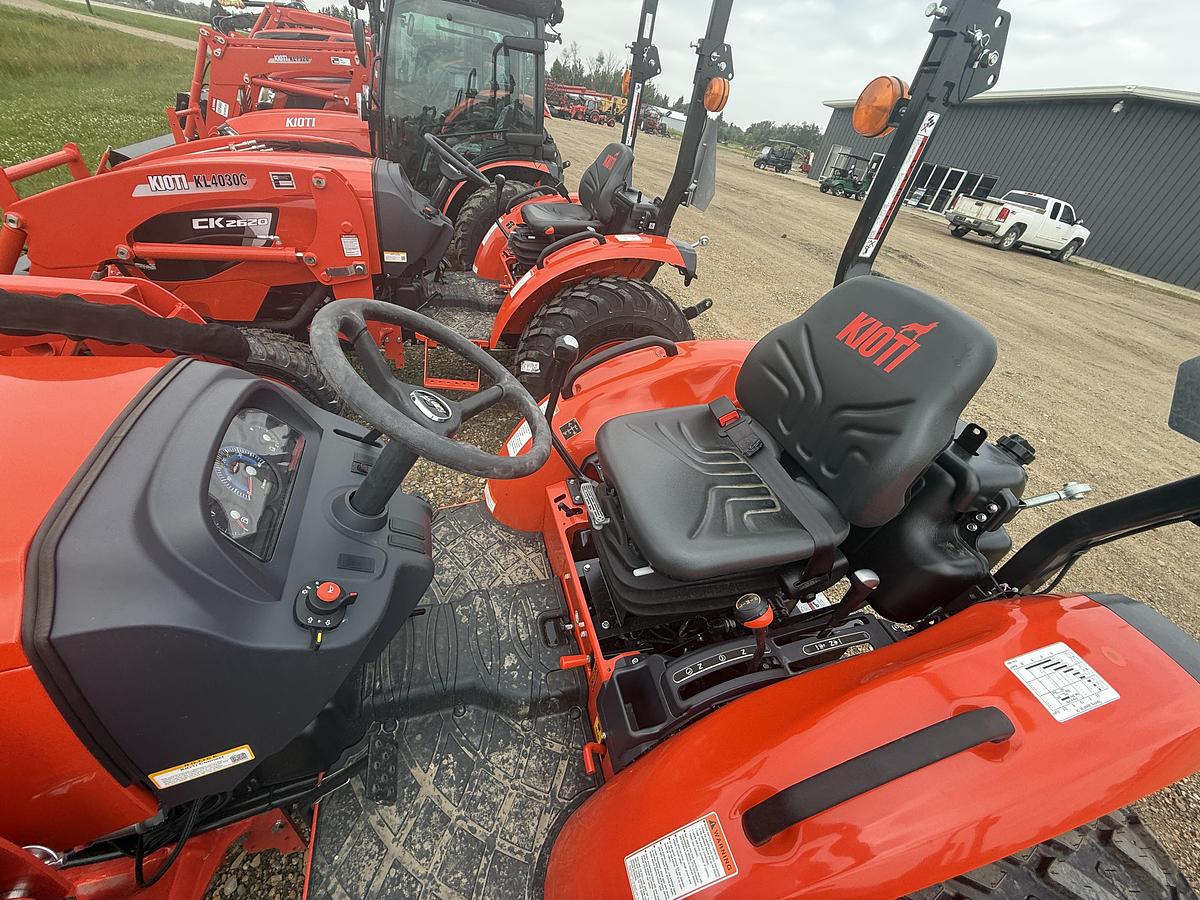

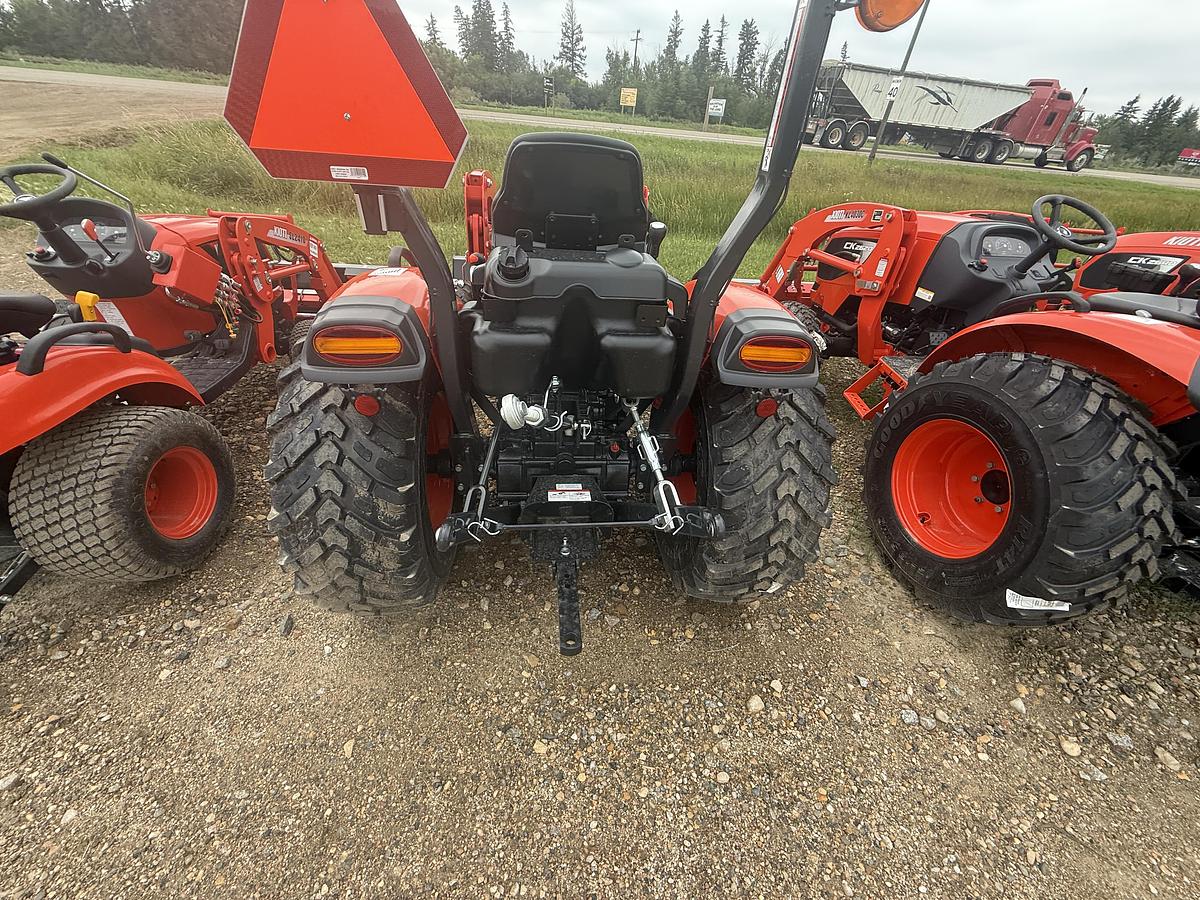

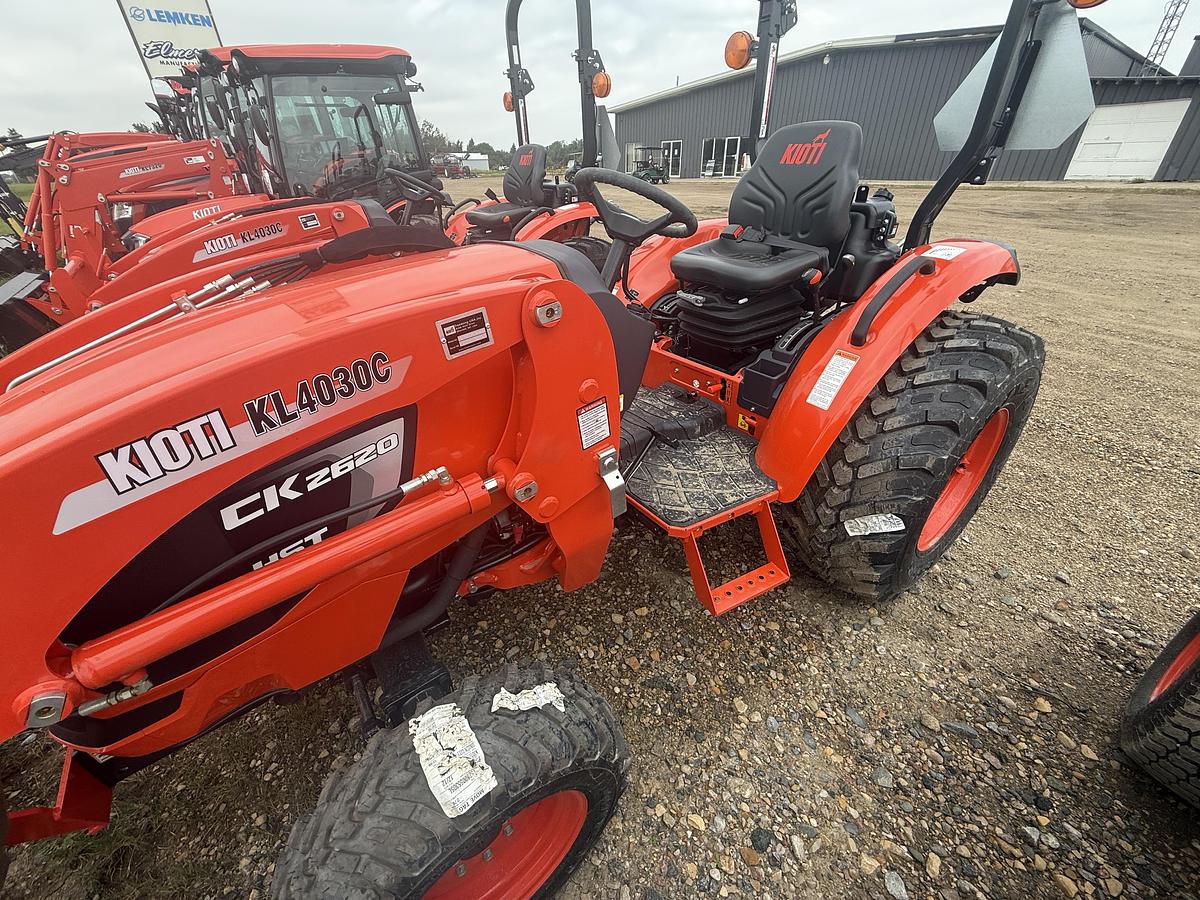

2025 Kioti CK2620H

lncludes KL4030C Loader Package with 60" or 66" Quick Attach Bucket and Grill Guard Serial

Engine

• EngineModel: 3A165LWM-U4
• Engine Power18.20 kW (24.50 hp)
• Displacement1,647 cc (100.50 cu. in.)
• AspirationNatural

Fuel System

• Fuel TypeDiesel

PTO

• PTO TypeLivePTO Power,
• Rated Engine Speed13.90 kW (18.70 hp)
• Rear PTO Speed540 rpm

DrivetrainTransmissionHydrostatic |

• Shuttle: Dry Single Stage |Main Gear:
• Dry Single StageClutchDry Single Stage
• SteeringMechanical

Brakes

• Brake System TypeWet Multi Disc

Operational

• Operating SpeedTravel Forward: 3 Ranges, w/ infinite | Travel Reverse: 3 Ranges, w/ infinite | Travel Minimum: 1.21 km/h (0.75 mph) | Travel Maximum: 16.11 km/h (10.01 mph) | Travel Max Reverse: 7 km/h (11.28 mph)

Hydraulics

• Pump TypeGearHydraulic Pump44.40 lpm (11.70 gpm)

Chassis

• Hitch/TypeThree Point | Category: 1

Dimensions

• DimensionsFront Tread: 1,225 mm (48.20 in) | Rear Tread: 1,210 mm (47.60 in)Length3,070 mm (120.90 in)Width1,385 mm (54.50 in)Height2,360 mm (92.90 in)Wheelbase1,670 mm (65.70 in)Ground Clearance340 mm (13.40 in)Turning Radius2.73 m (8.96 ft)

Capacities

• Fuel Capacity34 L (9 gal)Hitch Lift Capacity740 kg (1,631 lb) | 680 kg (1,500 lb)

Weights

• Weight1,220 kg (2,689 lb)

Features

• FeaturesControl Type: Position
