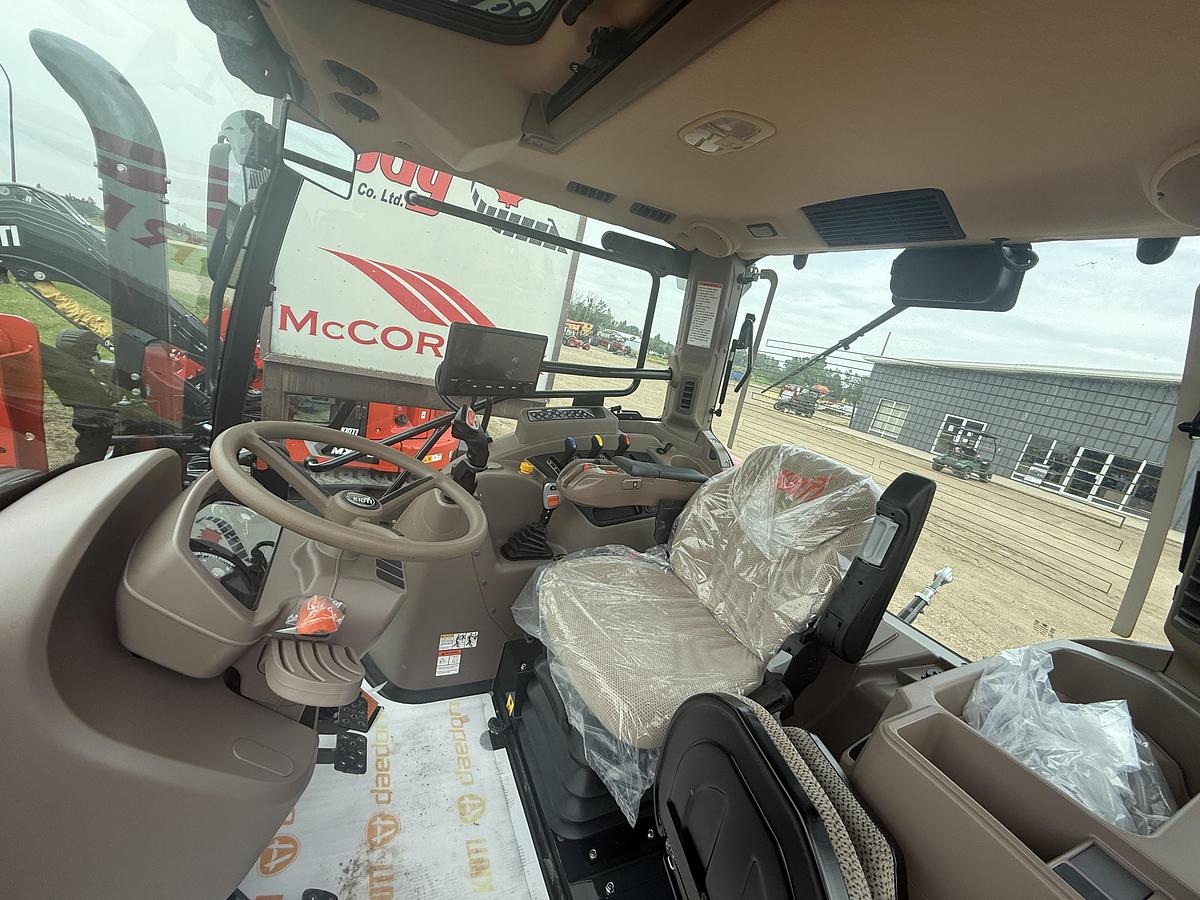

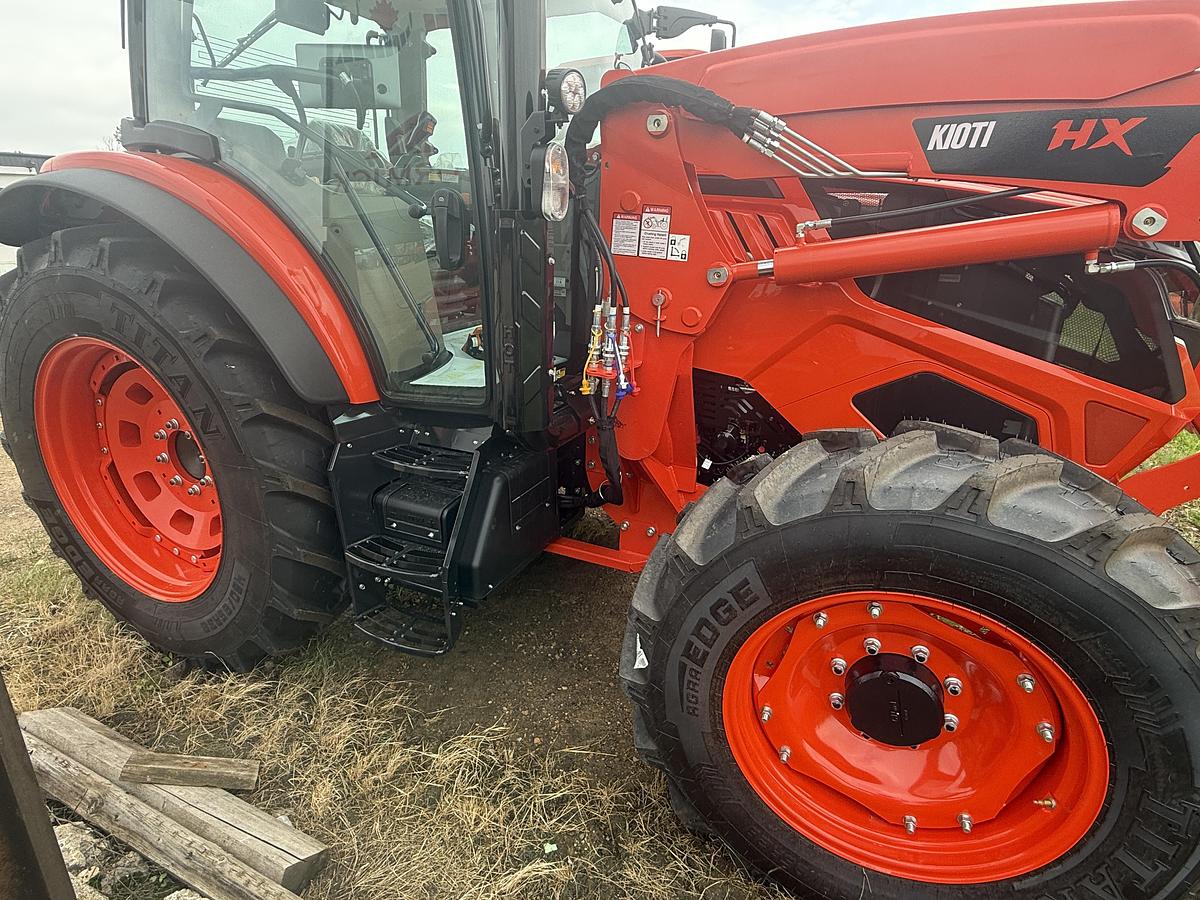

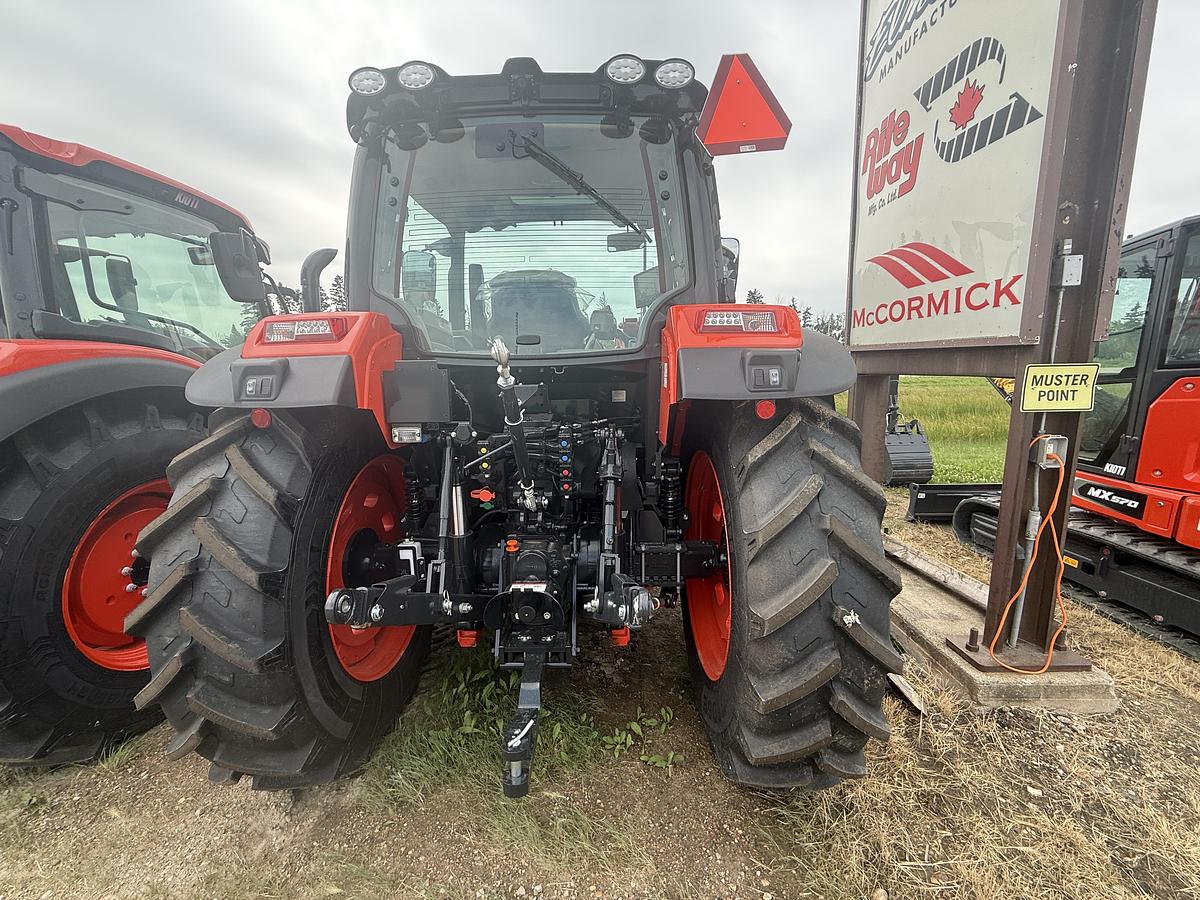

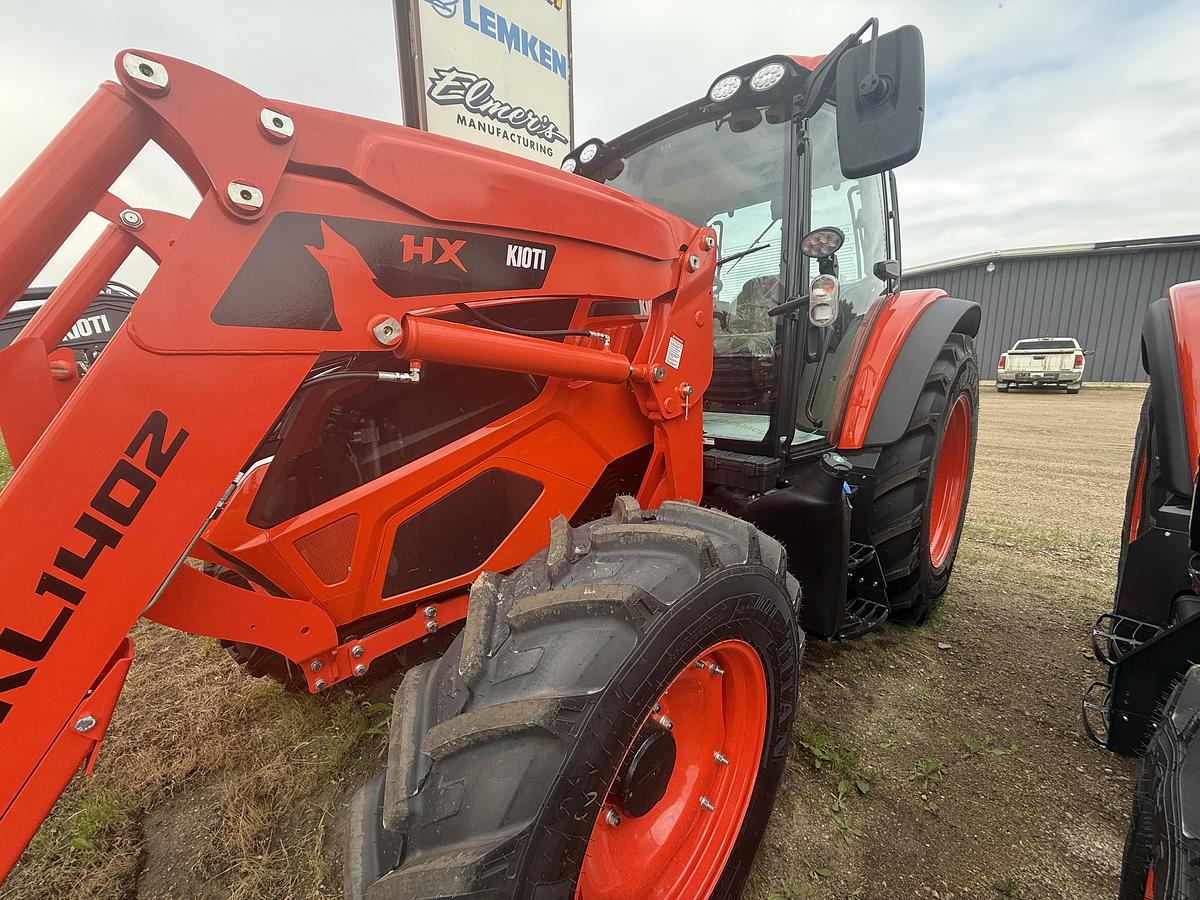

2026 Kioti HX1405 Power Shift Cab

Includes Loader KL1402 Loader Package

Engine

• Mode l4J243TA
• Engine Manufacturer KIOTI
• Power 140.10 hp (104.50 kW)
• Displacement 233.90 cu. in. (3,833 cc)
• RPM 2,200 rpm
• Fuel Type Diesel
• Aspiration Turbo Charged w/ Air to Air Intercooler
• Fuel Capacity 60.70 gal (229.80 L)

Transmission

• Transmission Power Shuttle with Semi-Powershift
• Shuttle Power Shuttle
• Main Gear Power Shift
• Travel Speeds Forward 32
• Travel Speeds Reverse 32
• Travel Speeds Minimum Speed 0.24 mph (0.38 km/h)
• Travel Speeds Maximum Speed 25.15 mph (40.48 km/h)
• Travel Speeds Min Reverse Speed 0.23 mph (0.37 km/h)
• Travel Speeds Max Reverse Speed 24.98 mph (40.20 km/h)

PTO

• PTO Type Independent
• PTO Power 120 hp (89.80 kW)
• Rear Speed 540 / 540E / 1000
• Mid Speed

Drive Train

• Brakes Wet Disc Type
• Clutch Wet Disc
• Steering Hydraulic Power Steering

Hydraulics

• Pump Gear
• Pump Capacity 44.10 gpm (166.80 lpm)
• Lift Capacity 8,492 lb (3,852 kg)

Hitch

• Type Three Point
• Category Category 2
• Control Type Manual
• Lift Capacity 8,492 lb (3,852 kg)

dimensions

• Length 177.87 in (4,517.90 mm)
• Width 89.25 in (2,266.95 mm)
• Height 114.41 in (2,906 mm)
• Wheelbase 102.36 in (2,599.94 mm)
• Weight 11,660 lb (5,288.90 kg)
• Ground Clearance 19.50 in (495.30 mm)
• Turning Radius w/ Brake 165.35 in (4,200 mm)
