2026 Kioti TL 750 Flow Plus

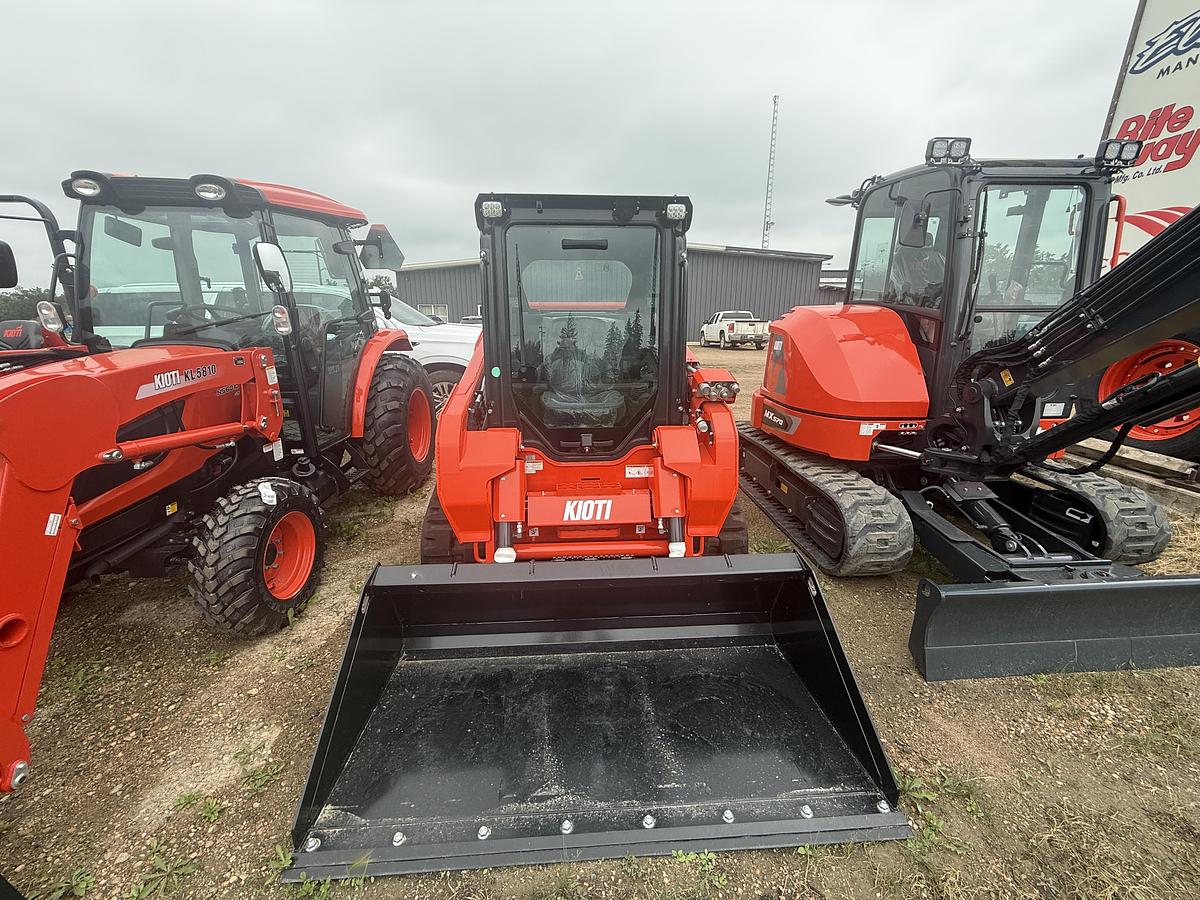

Come With 74" Standard Duty Bucket

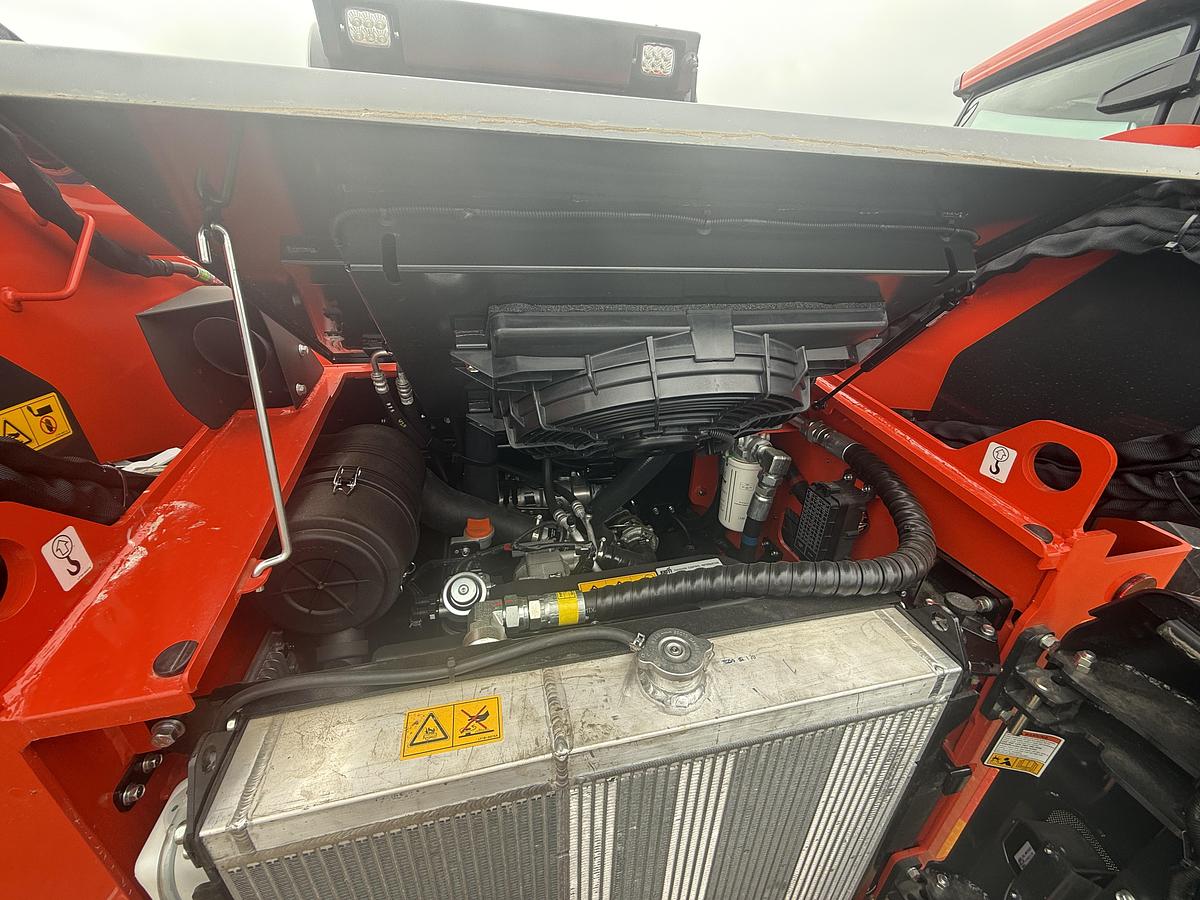

Engine

• Engine Model 4HTI4
• Engine Manufacturer KIOTI
• Engine Power 73.60 hp (54.90 kW)
• Engine Displacement 148.60 cu. in. (2,435 cc)
• RPM 2,400 rpm
• Fuel Type Diesel
• Fuel Capacity 26.40 gal (100 L)
• Oil Capacity 2.40 gal (9 L)
• Coolant Capacity 1.10 gal (4.20 L)
• Radiator Coolant Capacity 2.70 gal (10.40 L)

Hydraulics

• Lift Arm Path Vertical
• Lift Control ISO Pilot
• Tank Capacity 10 gal (38 L)
• Hydraulic Pressure - Standard 3,335 psi (230 bar)
• Hydraulic Flow - Standard 34 gpm (128.70 lpm)
• Hydraulics HP - Standard 41.80 hp (31.10 kW)
• Hydraulics High Flow Flow+
• Hydraulic Pressure - Flow+ 2,900 psi (200 bar)
• Hydraulics Pump Capacity 34 gpm (128.70 lpm)
• Hydraulic HP - Flow+ 65.70 hp (49 kW)

Operating Specs

• Tipping Load 6,570 lb (2,980 kg)
• Rated Operating Capacity (50% of Tip Load) 3,285 lb (1,490 kg)
• Rated Operating Capacity (35% of Tip Load) 2,299.50 lb (1,043 kg)
• Breakout Force, Tilt (Bucket) 5,512 lb (2,500 kg)
• Breakout Force, Lift 5,012 lb (2,275 kg)
• Traction Force 6,482 lb (2,940 kg)
• Travel Speed Forward Speeds 2
• Travel Speed Reverse Speeds 2
• Travel Speed Min Speed 4.70 mph (7.50 km/h)
• Travel Speed Max Speed 7.10 mph (11.50 km/h)

dimensions

• Length of Track on Ground 56.50 in (1,435 mm)
• Overall Length of Track 176.10 in (4,472 mm)
• Length without Bucket 116.10 in (2,950 mm)
• Length with Bucket 144.70 in (3,675 mm)
• Height with Cab & Beacon 85.70 in (2,178 mm)
• Height with Cab 81.90 in (2,080 mm)
• Height Max 163.80 in (4,160 mm)
• Hinge Pin Height at Max Lift 130.30 in (3,310 mm)
• Hinge Pin Height at Carry 8 in (203 mm)
• Reach at Max Lift and Dump 43.20 in (1,098 mm)
• Clearance at Max Lift and Dump 101.80 in (2,585 mm)
• Ground Clearance 8.70 in (220 mm)
• Departure Angle 25 °
• Dump Angle Max 42 °
• Width 70.90 in (1,800 mm)
• Turning Radius Center to Rear 67.30 in (1,709 mm)
• Turning Radius Center to Coupler 57.10 in (1,450 mm)
• Turning Radius Center to Bucket 87.50 in (2,223 mm)
• Rack Back Angle at Max Height 88 °
• Bucket Pin Reach at Max Lift 23.50 in (597 mm)
• Width with Bucket 74.40 in (1,890 mm)
• Rack Back Angle at Ground Level 29 °
• Front Tread 55.10 in (1,400 mm)
• Rear Tread 55.10 in (1,400 mm)
