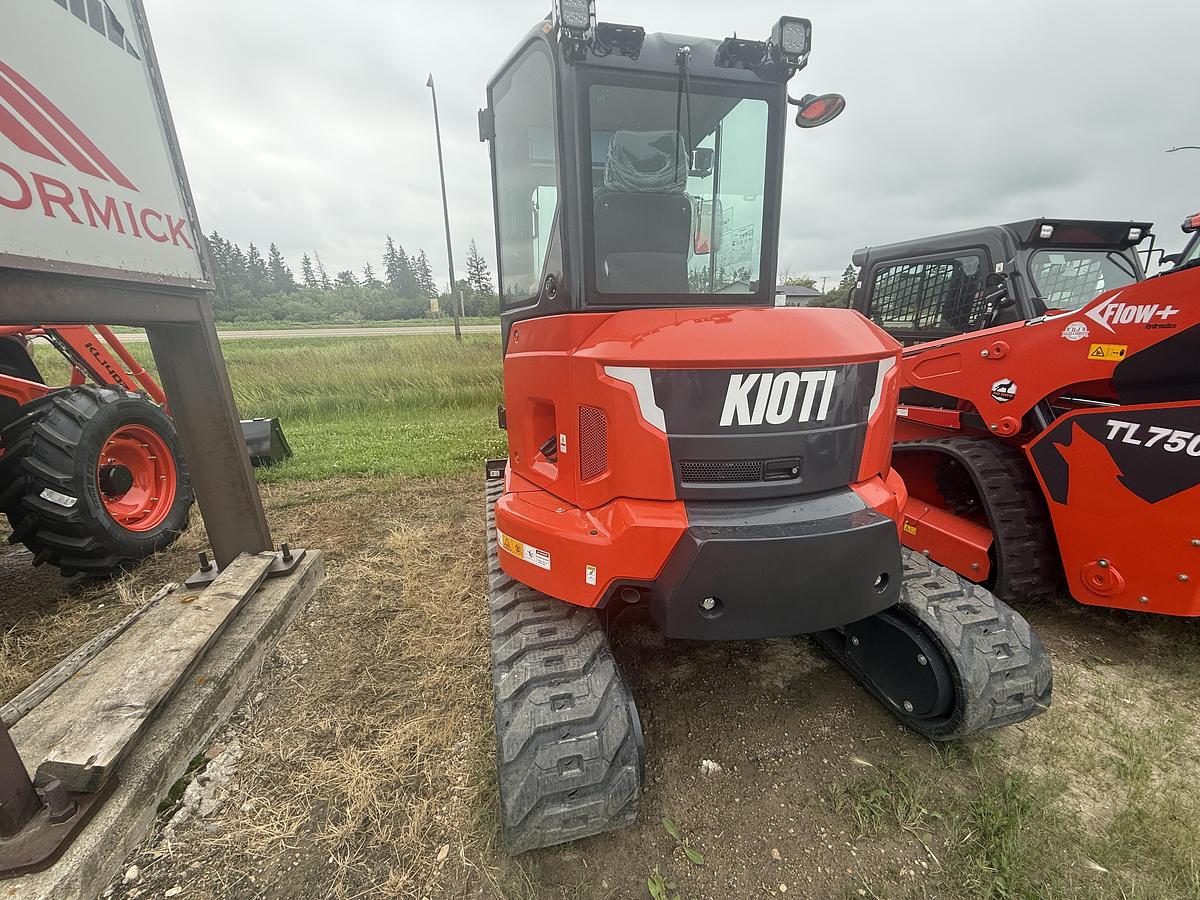

2026 Kioti MX570A

Engine

• Engine Model 4TNV86CT
• Engine Manufacturer Yanmar
• Engine Power 34.50 hp (34.60 kW)
• Engine Displacement 127.60 cu. in. (2,091 cc)
• RPM 1 rpm
• Fuel Type Diesel
• Aspiration Turbo Charged
• Fuel Capacity 14.50 gal (55 L)
• Oil Capacity 1.80 gal (6.70 L)

Hydraulics

• Lift Arm Path Vertical
• Lift Control Manual
• Hydraulic Pressure - Standard 2,901 psi (20 bar)
• Hydraulic Flow - Standard 40 gpm (149.40 lpm)

Operating Specs

• Tipping Load 5,000 lb (2,268 kg)
• Rated Operating Capacity (50% of Tip Load) 2,500 lb (1,134 kg)
• Rated Operating Capacity (35% of Tip Load) 1,750 lb (793.80 kg)
• Breakout Force, Tilt (Bucket) 5,512 lb (2,500 kg)
• Breakout Force, Lift 5,016 lb (2,275 kg)
• Rated Operating Capacity with Optional Counterweight 5,016 lb (2,275 kg)
• Traction Force (2,879 kg)
• Travel Speed Forward Speeds 2
• Travel Speed Reverse Speeds 2
• Travel Speed Min Speed 1.40 mph (2.30 km/h)
• Travel Speed Max Speed 2.60 mph (4.20 km/h)

dimensions

• Length 223.20 in (5,650 mm)
• Width 78 in (1,960 mm)
• Height 102 in (2,570 mm)
• Ground Clearance 10 in (258 mm)
• Crawler / Track Length 99.60 in (2,500 mm)
• Shoe Width 16 in (400 mm)
• Weight 13,076 lb (5,830 kg)
