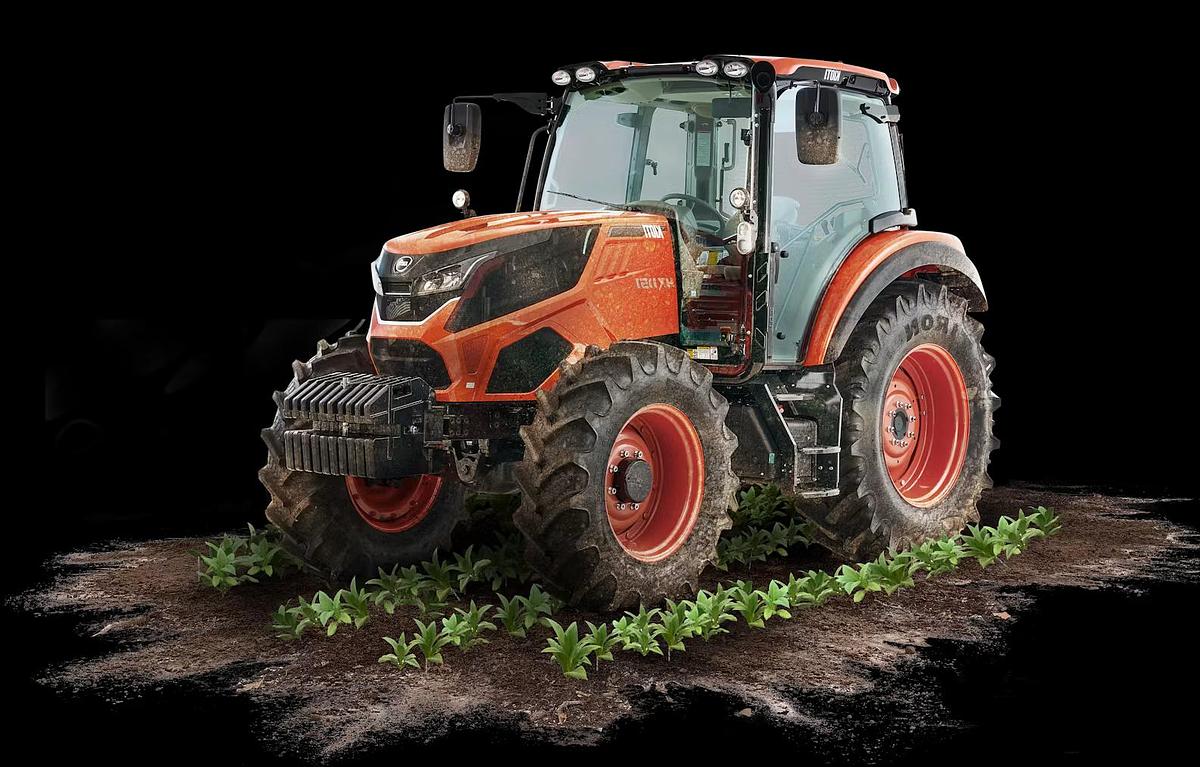

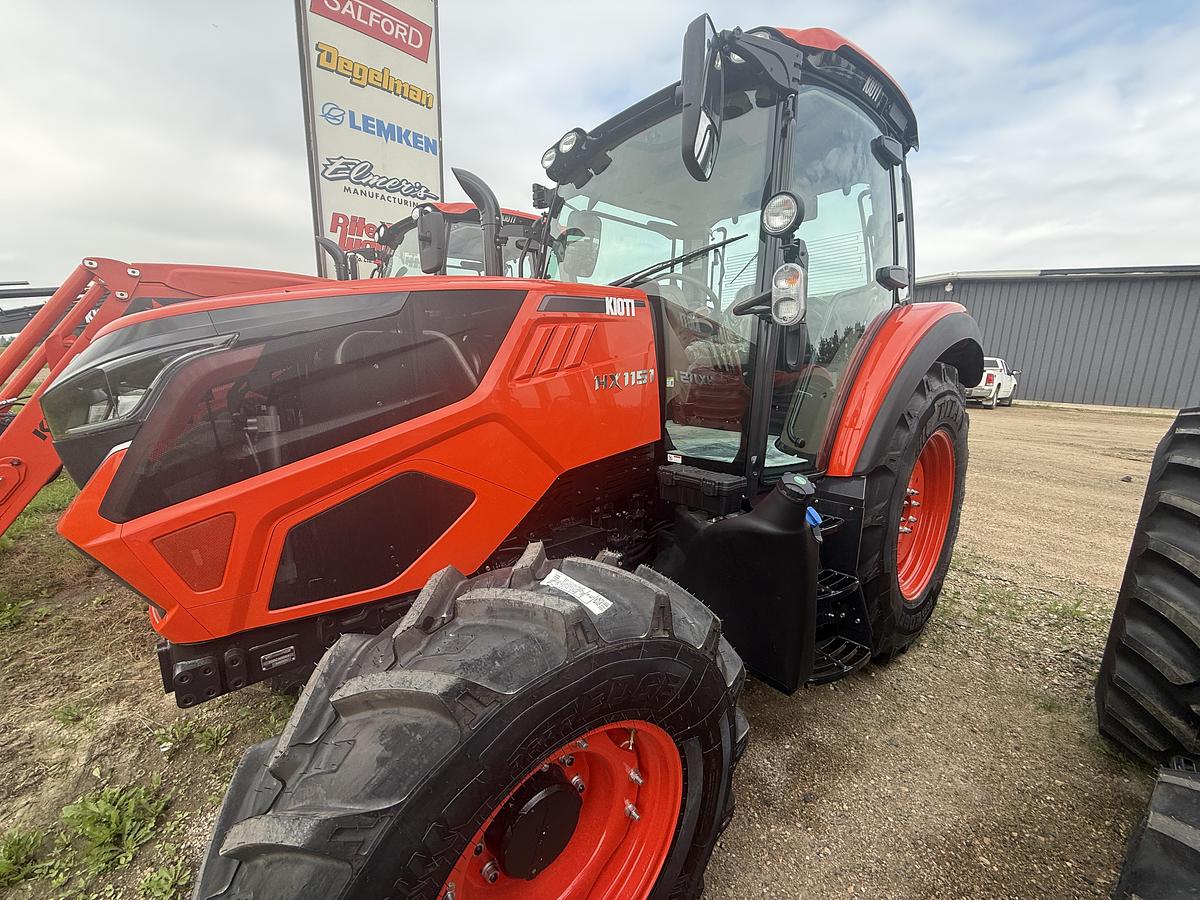

2026 Kioti HX1151

Complete with KL1155 Loader package including 90" quick attach bucket and grill guard

Engine

• Model 4J243TA-TP5B
• Engine Manufacturer KIOTI
• Power 115.30 hp (86 kW)
• Displacement 233.90 cu. in. (3,833 cc)
• RPM 2,200 rpm
• Fuel Type Diesel
• Aspiration Turbo Charged w/ Air to Air Intercooler
• Fuel Capacity 47.60 gal (180 L)

Transmission

• Transmission Manual: Power Shuttle
• Shuttle Power Shuttle
• Travel Speeds Forward 24
• Travel Speeds Reverse 24
• Travel Speeds Minimum Speed 1.15 mph (1.85 km/h)
• Travel Speeds Maximum Speed 23.84 mph (38.36 km/h)
• Travel Speeds Min Reverse Speed 1.14 mph (1.83 km/h)
• Travel Speeds Max Reverse Speed 23.67 mph (38.10 km/h)

PTO

• PTO Type Independent
• PTO Power 83.90 hp (62.60 kW)
• Rear Speed 540 / 540E / 1000
• Mid Speed N/A

Drive Train

• Brakes Wet Multi Disc
• Clutch Wet Multi Disc
• Steering Hydrostatic Power Steering

Hydraulics

• Pump Gear
• Pump Capacity 32 gpm (121 lpm)
• Lift Capacity 8,002 lb (3,360 kg)

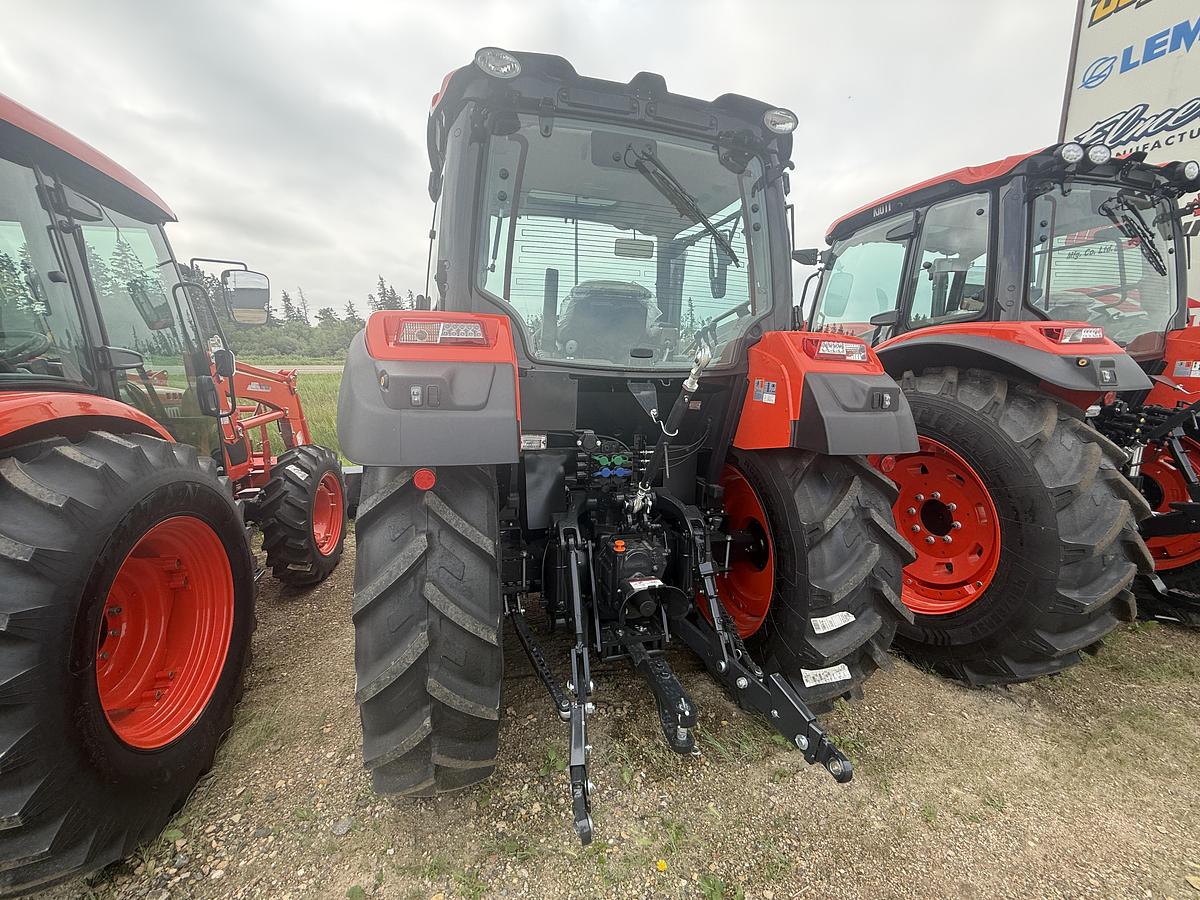

Hitch

• Type Three Point
• Category Category 2
• Control Type Electronic Control
• Lift Capacity 8,002 lb (3,630 kg)

Dimensions

• Length with Hitch 170.78 in (4,338 mm)
• Width 88.58 in (2,250 mm)
• Height 111.93 in (2,843 mm)
• Wheelbase 94.88 in (2,410 mm)
• Ground Clearance 18.94 in (481 mm)
• Front Tread 65.35 in (1,660 mm)
• Rear Tread 70.47 in (1,790 mm)
• Turning Radius 12.69 ft (3.87 m)

Tires

• Agricultural
• Front: 13.6-24
• Rear: 18.4-34
