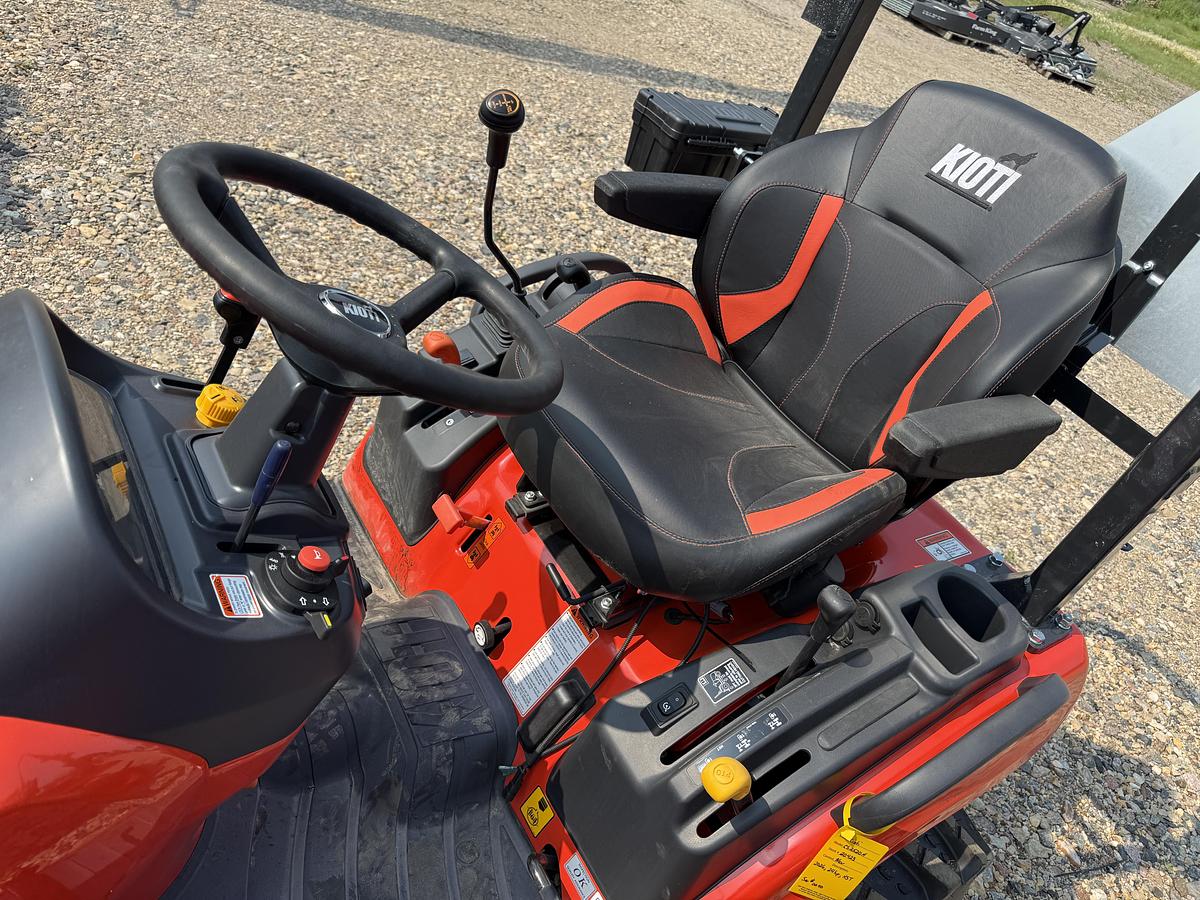

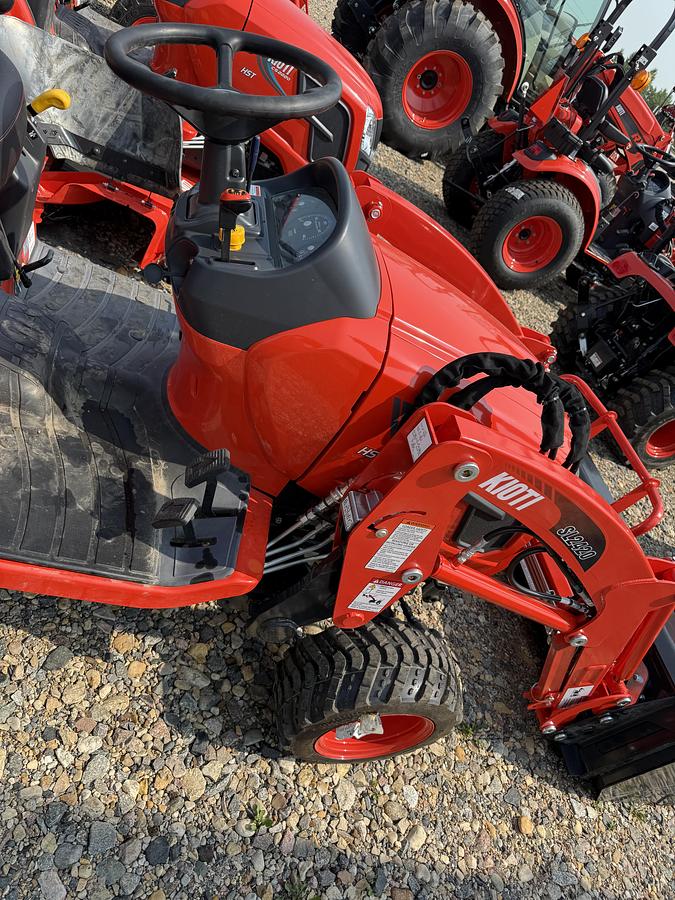

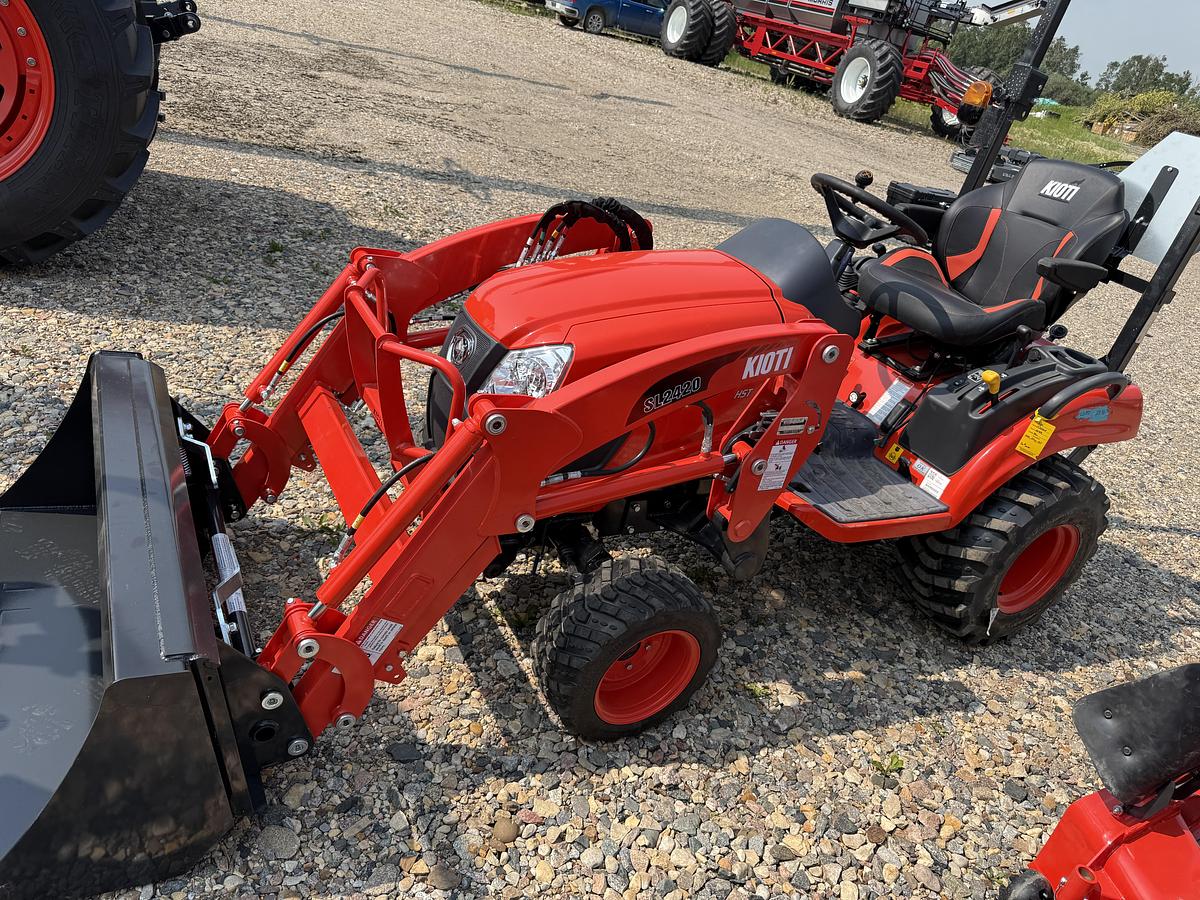

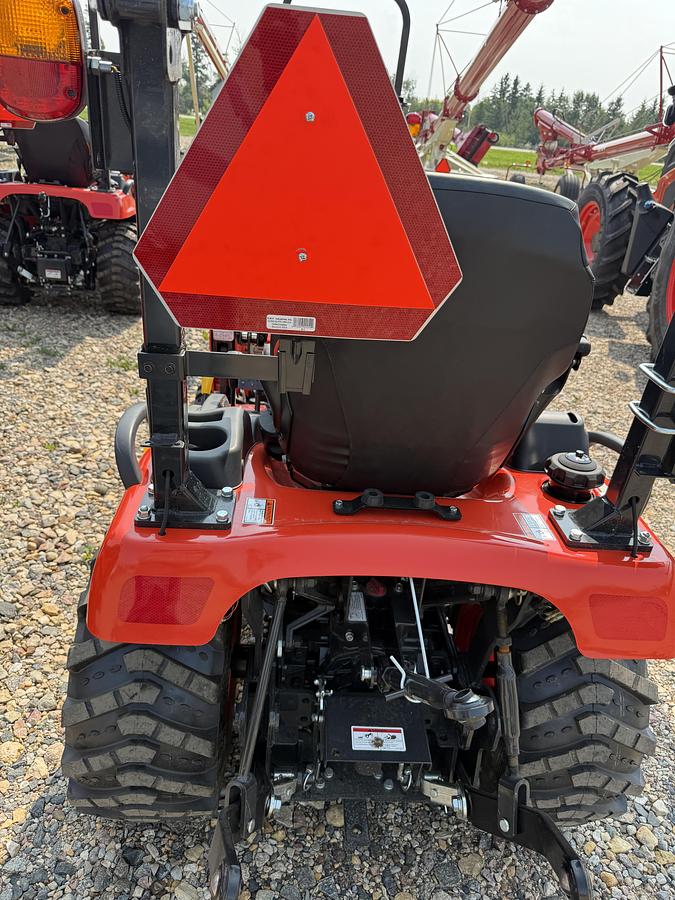

2026 Kioti CS2520H

Engine

Model 3C100LFH-U2

Engine Manufacturer KIOTI

Power 24.50 hp (18.30 kW)

Displacement 61.50 cu. in. (1,007 cc)

RPM 3,000 rpm

Fuel Type Diesel

Fuel Capacity 6.70 gal (25.50 L)

Transmission

Transmission Hydrostatic

Main Gear Hydrostatic

PTO

PTO Type Independent

PTO Power 18.50 hp (13.90 kW)

Rear Speed 540 rpm

Mid Speed 2,200 rpm

Drive Train

Brakes Wet Multi Disc

Clutch Wet Multi Disc

Steering Hydraulic Power Steering

Hydraulics

Pump Gear

Pump Capacity 7 gpm (26.40 lpm)

Lift Capacity 700 lb (318 kg)

Hitch

Type Three Point

Category Category 1

Control Type Position

Lift Capacity 700 lb (318 kg)

dimensions

Length with Hitch 99.30 in (2,523 mm)

Width 45.90 in (1,168 mm)

Wheelbase 55.10 in (1,400 mm)

Ground Clearance 6.40 in (162 mm)

Front Tread 44.60 in (1,133 mm)

Rear Tread 46 in (1,168 mm)

Turning Radius 8.20 ft (2.54 m)

Weight 1,554 lb (705 kg)

Height 88 in (2,226 mm)
