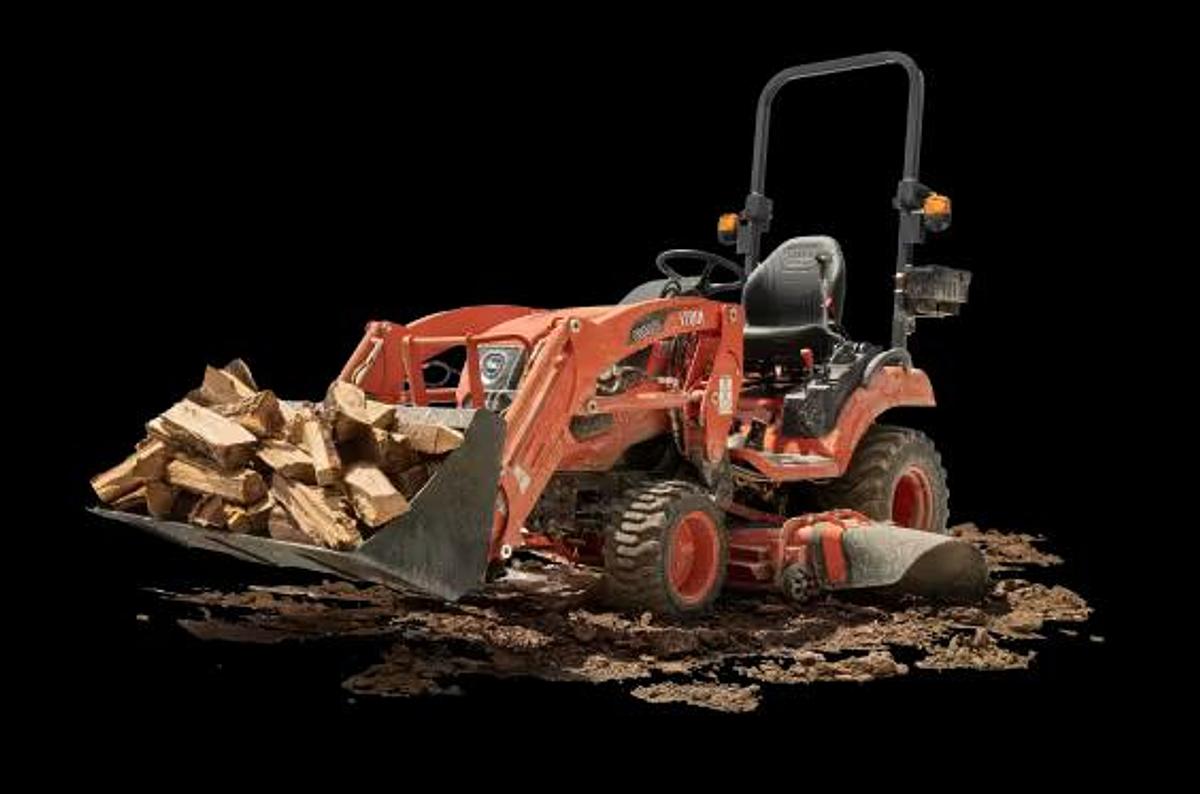

2026 Kioti CS2520H

Engine

• Model 3C100LFH-U2
• Engine Manufacturer KIOTI
• Power 24.50 hp (18.30 kW)
• Displacement 61.50 cu. in. (1,007 cc)
• RPM 3,000 rpm
• Fuel Type Diesel
• Fuel Capacity 6.70 gal (25.50 L)

Transmission

• Transmission Hydrostatic
• Main Gear Hydrostatic

PTO

• PTO Type Independent
• PTO Power 18.50 hp (13.90 kW)
• Rear Speed 540 rpm
• Mid Speed 2,200 rpm

Drive Train

• Brakes Wet Multi Disc
• Clutch Wet Multi Disc
• Steering Hydraulic Power Steering

Hydraulics

• Pump Gear
• Pump Capacity 7 gpm (26.40 lpm)
• Lift Capacity 700 lb (318 kg)

Hitch

• Type Three Point
• Category Category 1
• Control Type Position
• Lift Capacity 700 lb (318 kg)

dimensions

• Length with Hitch 99.30 in (2,523 mm)
• Width 45.90 in (1,168 mm)
• Wheelbase 55.10 in (1,400 mm)
• Ground Clearance 6.40 in (162 mm)
• Front Tread 44.60 in (1,133 mm)
• Rear Tread 46 in (1,168 mm)
• Turning Radius 8.20 ft (2.54 m)
• Weight 1,554 lb (705 kg)
• Height 88 in (2,226 mm)
