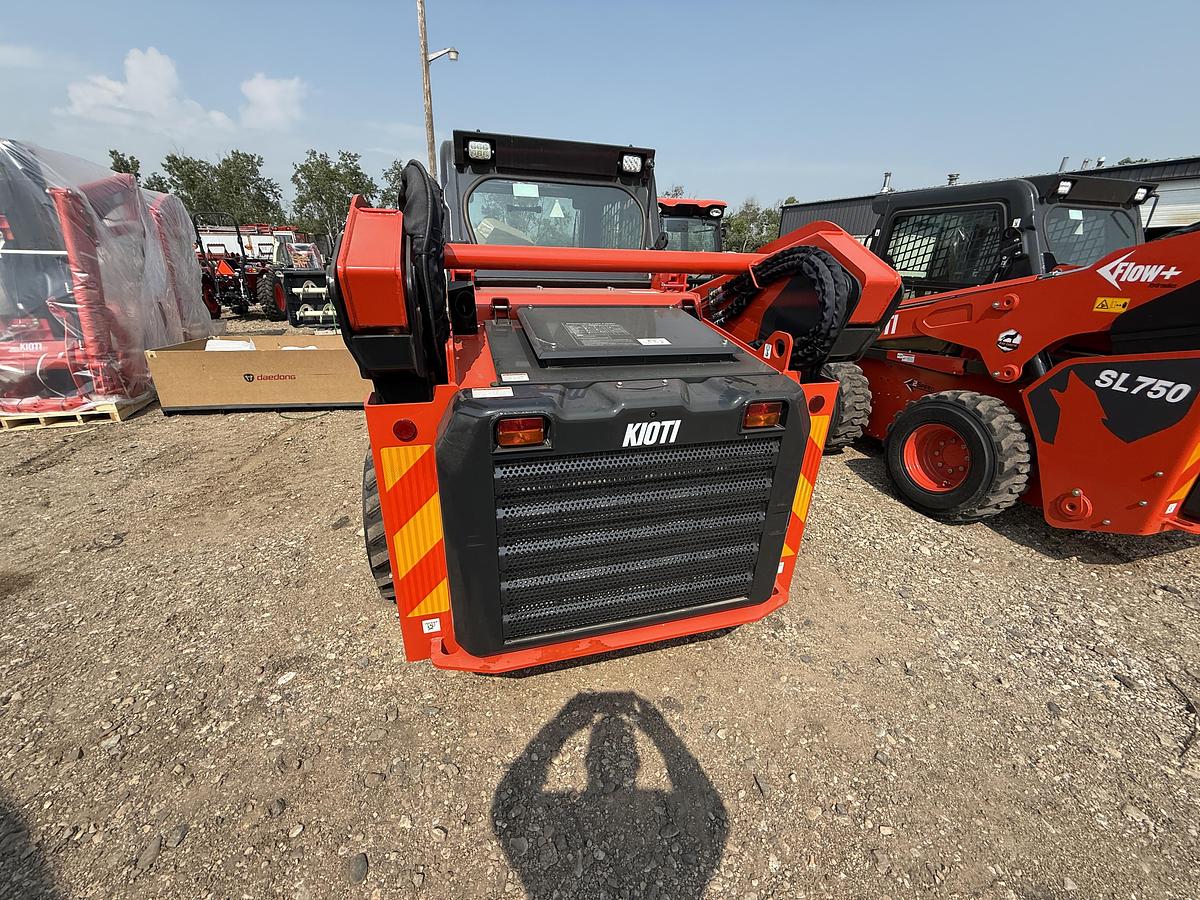

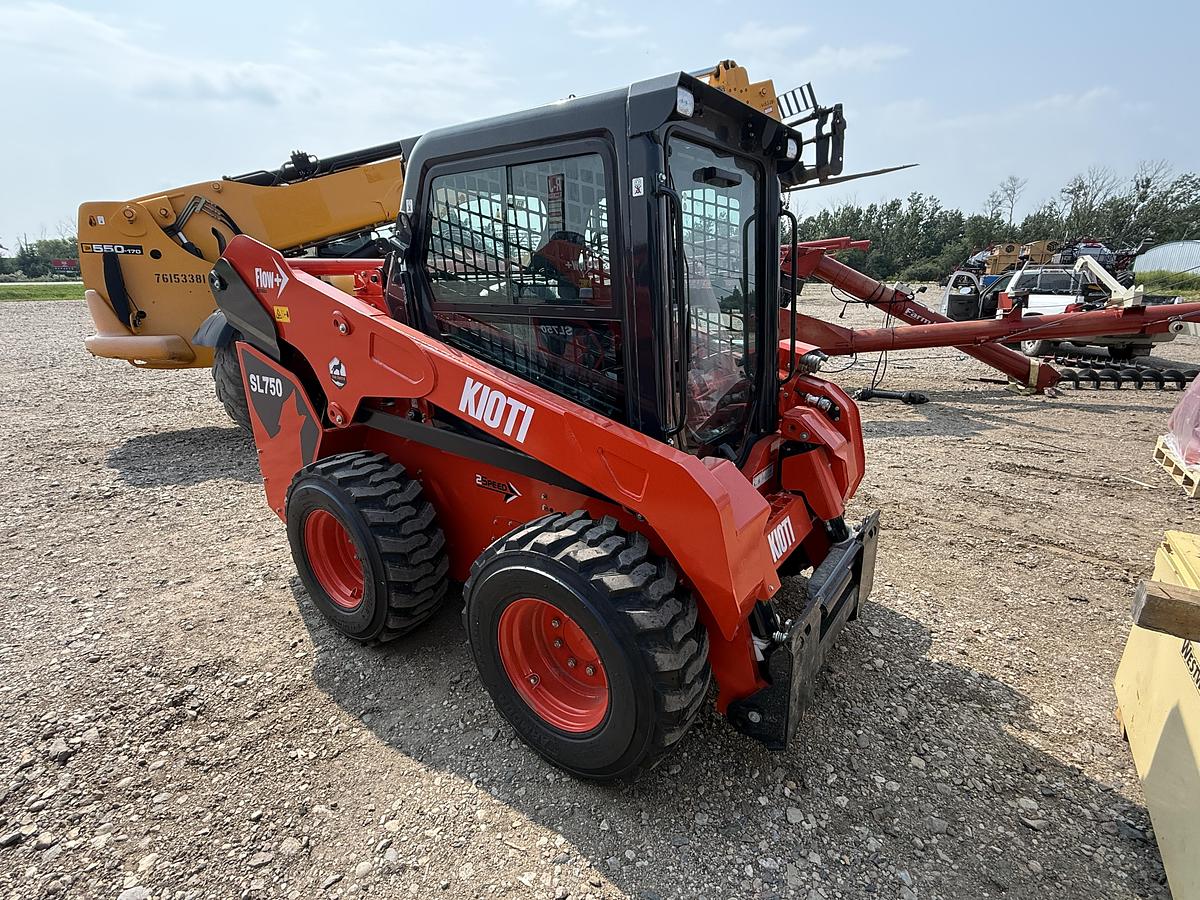

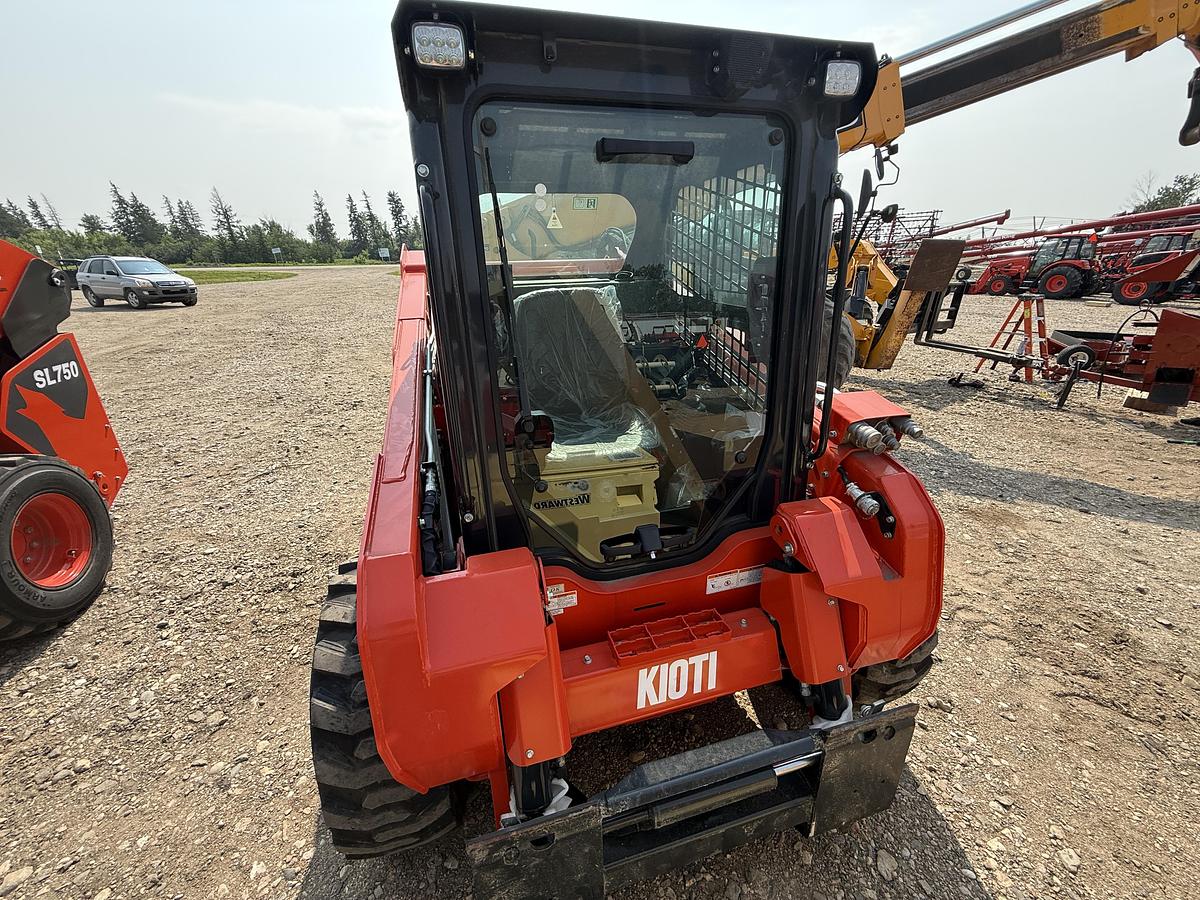

2026 Kioti SL750 Flow Plus

Engine

• Engine Model 4HTI4
• Engine Manufacturer KIOTI
• Engine Power 73.60 hp (54.90 kW)
• Engine Displacement 148.60 cu. in. (2,435 cc)
• RPM 2,400 rpm
• Fuel Type Diesel
• Fuel Capacity 26.40 gal (100 L)
• Oil Capacity 2.40 gal (9 L)
• Coolant Capacity 1.10 gal (4.20 L)
• Radiator Coolant Capacity 10.40 gal (2.70 L)

Hydraulics

• Lift Arm Path Vertical
• Lift Control ISO Pilot
• Tank Capacity 10 gal (38 L)
• Hydraulics High Flow Flow+
• Hydraulic Pressure - Flow+ 3,335 psi (230 bar)
• Hydraulic Flow 34 gpm (128.70 lpm)
• Hydraulic HP - Flow+ 65.70 hp (49 kW)

Operating Specs

• Tipping Load 5,380 lb (2,440 kg)
• Rated Operating Capacity (50% of Tip Load) 2,690 lb (1,220 kg)
• Rated Operating Capacity (35% of Tip Load) 1,883 lb (854 kg)
• Breakout Force, Tilt (Bucket) 5,512 lb (2,500 kg)
• Breakout Force, Lift 5,016 lb (2,275 kg)
• Traction Force 6,347 lb (2,879 kg)
• Travel Speed Forward Speeds 2
• Travel Speed Reverse Speeds 2
• Travel Speed Min Speed 7.15 mph (11.50 km/h)
• Travel Speed Max Speed 12.05 mph (19.40 km/h)
• Noise & Vibration Body Vibration 0.37 m/s²
• Noise & Vibration Arm Vibration 0.57 m/s²
• Noise & Vibration Outside Cab Volume 101 dB
• Noise & Vibration Inside Cab Volume 80 dB
• Chain Box Capacity 3.40 gal (13 L)

dimensions

• Wheelbase Length 47.20 in (1,200 mm)
• Length without Bucket 116.50 in (2,960 mm)
• Length with Bucket 144.70 in (3,675 mm)
• Height with Cab 81.20 in (2,063 mm)
• Height with Cab & Beacon 85.10 in (2,161 mm)
• Height Max 160.20 in (4,068 mm)
• Hinge Pin Height at Max Lift 126.60 in (3,215 mm)
• Hinge Pin Height at Carry 8.30 in (212 mm)
• Reach at Max Lift and Dump 37.40 in (949 mm)
• Clearance at Max Lift and Dump 97.40 in (2,473 mm)
• Ground Clearance 7.70 in (195 mm)
• Departure Angle 25 °
• Bumper Overhang Behind Rear Axle 44.40 in (1,127 mm)
• Dump Angle Max 42 °
• Body Width Above Tires 71.70 in (1,820 mm)
• Turning Radius Center to Rear 70.40 in (1,788 mm)
• Turning Radius Center to Coupler 60.90 in (1,548 mm)
• Turning Radius Center to Bucket 85 in (2,158 mm)
• Rack Back Angle at Max Height 88 °
• Bucket Pin Reach at Max Lift 16.30 in (414 mm)
• Width with Bucket 74.40 in (1,890 mm)
• Rack Back Angle at Ground Level 29 °
• Front Tread 59.60 in (1,513 mm)
• Rear Tread 59.60 in (1,513 mm)
• Operating weight with operator 8,735 lb (3,962 kg)
• Operating weight without operator 8,569 lb (3,887 kg)
